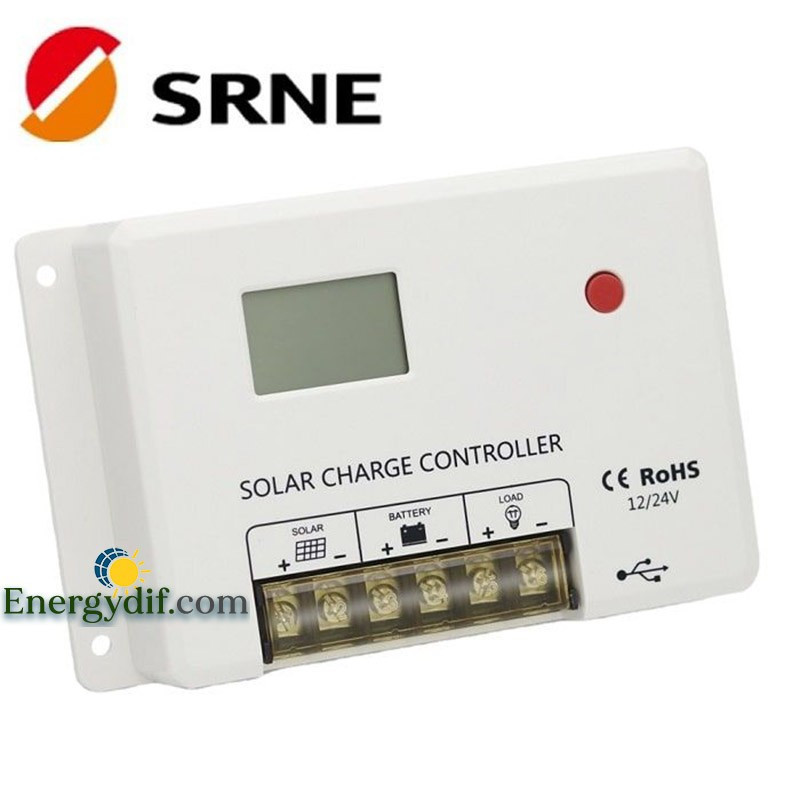

Solar controller SRNE PWM HC 24V 30A

By buying this product you can collect up to 2 loyalty points. Your cart will total 2 loyalty points that can be converted into a voucher of 0,40 €.


HP24V30A

New product

The new SRNE range offers you its PWM solar regulators with automatic detection of the system voltage (12/24V),

This product is no longer in stock

47,80 €

Solar regulator SRNE PWM HC 12/24V 30A


Its advantages

The voltages of the 12V / 24 V system are automatically recognized.

The SRNE HC solar controller has an improved 3-step PWM charging algorithm. Periodically applying equalizing charge to the battery or when over-discharging can effectively prevent the battery from not equalizing and causing sulfidation, which increases battery life.

With temperature compensation used, charging parameters can be adjusted automatically.

A wide range of load operation modes make it easy to apply the controller to different load types.

The PWN HC regulator provides protection

  • against overload
  • against undervoltage
  • against overcurrent
  • against short circuits
  • TVS against lightning

Thanks to an advanced load starting method, large capacity loads can be started smoothly.

The user-friendly design of the browser and dynamic interfaces on the LCD display ensure convenient and intuitive operations.

With its industrial-grade design, the product can work in various harsh conditions.

Features



System voltage 12V / 24V
Battery operating voltage range 8 - 32V
Rated currentLoading30A
Charge30A
Maximum PV input voltage 50V, activate protection and stop charging. Below 45V, charging resumes.
charging method Default is PWM load, b04/b07 can be set for intermittent load.
USB output 5V/2A
Static power consumption ≤10mA
Operating temperature -35 -+60°C
Altitude ≤ 3000m
IP rating IP32
Product size 159 x 100 x 39mm
Installation size 147 x 80mm
Weight 290g

Technical characteristics

Charging power30A
MPPT/PWMPWM
