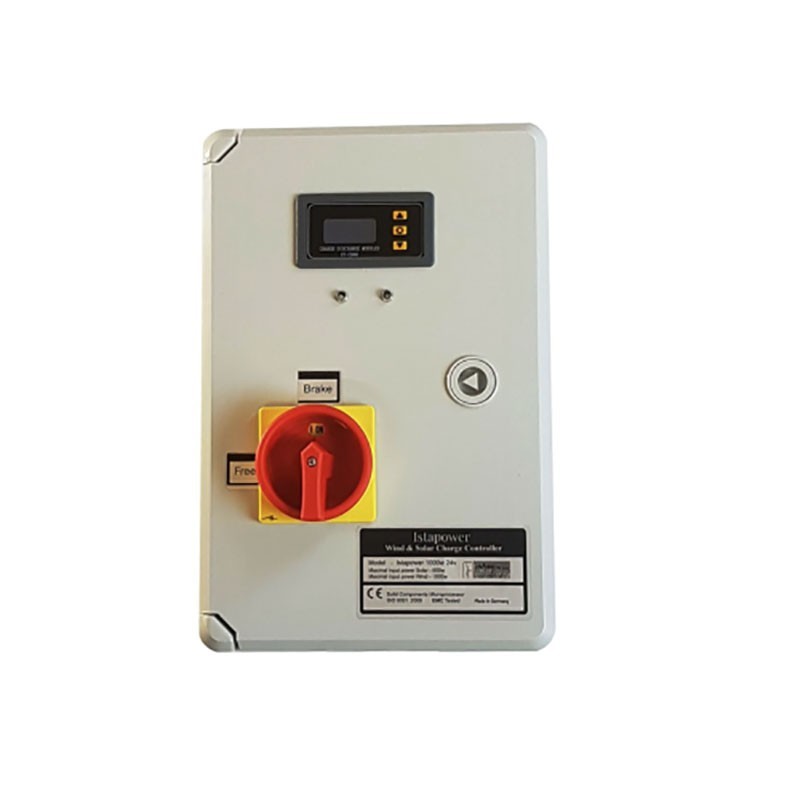

12V-24V 800W Hybrid Charge Controller

800W Hybrid Charge Controller
Istapower Charge Controller
Introduction
The function of the charge controller is to monitor the battery
voltage, and once it reaches full charge, disconnect energy sources
(wind turbine and / or solar panel), to avoid        overloading the battery
bank. Furthermore, at risk to the turbine (excessive rotation), the
controller actuates the braking automatically. Also, in case of risk to
the controller, such as over temperature, load interruption occurs
and braking of the turbine. Other protections are also present, such
as input voltage limits.
The Istapower controller allows direct connection of wind generator
(three-phase turbine with permanent magnets,) and 12/24/48V
battery bank, to generate a complete solution to battery charge
with power wind. It also has input for solar cell panel (600W
maximum), to use solar and wind energy (hybrid system). The
hybrid system as an interesting combination, since often days of
little wind exhibit good insulation, and vice versa.
All the controller circuit is designed with electronic components
without the use of electromechanical components (relays). This
contributes to a long service life and substantially increases the
reliability of the installation.
The whole set is packaged in a metal housing of high mechanical
strength which removes the heat generated efficiently, avoiding
overheating.

You can view the charge controller manual here -->
