12V-24V i / HCC 800 Contrôleur hybride de charge solaire pour Eolienne

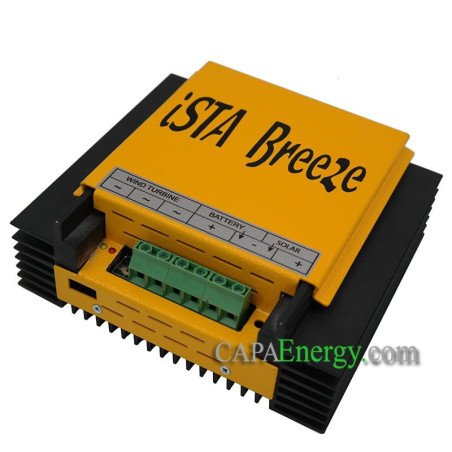

12V-24V i / HCC 800 Hybrid Solar Charge Controller for Wind Turbine

By buying this product you can collect up to 12 loyalty points. Your cart will total 12 loyalty points that can be converted into a voucher of 2,40 €.


4010

New product

The IstaBreeze® hybrid wind / solar charge controller is an intelligent controller of the wind turbine and solar cells that it controls at the same time.

242,00 €

The IstaBreeze® hybrid wind / solar charge controller is an intelligent controller of the wind turbine and solar cells that it controls at the same time.

The high-end device controls your island system. It is used to charge and control your battery efficiently and safely with the wind / solar module combination.

With its unobtrusive appearance, simple operation, built-in protection functions, this unit has high efficiency and low no-load losses.

This version of the controller will significantly increase the life and stability of the entire system, especially the batteries.

Special features and product information are listed below:

  •  Use of solid state components
  •  Increase the life of the controller
  •  Microprocessor controlled load with integrated voltage and current limiting.
  •  The electromagnetic brake control, the generator is automatically braked gently when the battery is full, modern braking system in three stages to prevent immediate blockage of the turbine. Increase the life of the stator.
  • Protection against overloads, deep discharges, short circuits, overloads and against incorrect polarity inversions.
hybrid charge controller
Minimum battery voltage(12V = 8.5V) - (24V = 17.5V)
battery system voltage12 - 24 Vdc automatic detection
Integrated manual stop switchinterview
cable6qmm screw terminals
Final load voltages for types of batteriesAcid, gel
Charging voltage Max.(12V = 14.6V) - (24V = 29.2V)
LCD display of all relevant operating data (optional)Amps, Watts, RPM, battery voltage, volts, temperature.
Dimensions WxWxH150x170x70mm
PV module with maximum input power300 watts
Maximum input power of 3-phase AC wind turbine750 watts
temperature compensation-4mV ° C / 2V, -35 ° C- + 80 ° C, Accuracy: ± 1 ° C
Heat dissipative housingAnodized aluminum with cooling fins
braking functionAt 12V = 14.6 to 24V = 29.2
operatingNormal: 20 ~ + 55 ° C / 35 ~ 85% HR Industrial: 30 ~ + 55 ° C / 35 ~ 85% RH
weight1.5 kg
