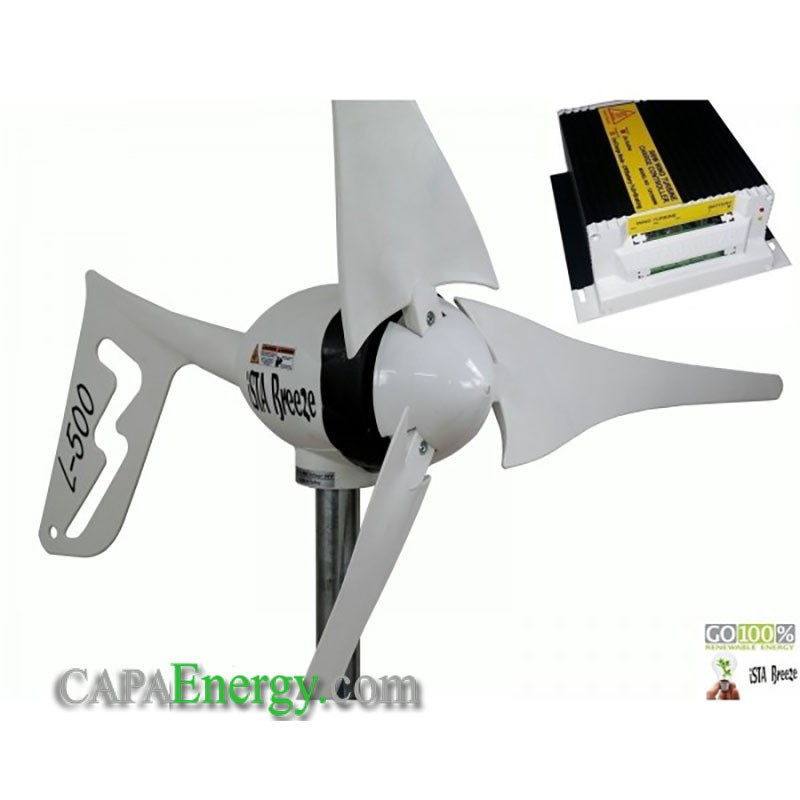

500W-24V L500 wind turbine, regulator Land + 500W

By buying this product you can collect up to 21 loyalty points. Your cart will total 21 loyalty points that can be converted into a voucher of 4,20 €.


New product

L500 Land model wind turbine is an excellent ally of the domestic economies. It has excellent compatibility in hybrid installations with solar energy.

425,00 €

L500 Land model wind turbine is an excellent ally of the domestic economies. It has excellent compatibility in hybrid installations with solar energy.

Made from fiberglass reinforced plastic, the rotor blades and housing are very durable and stable, but exceptionally lightweight.

The sliding contact without maintenance (without coal) guarantees a good flow of current and therefore no torsion of the cable in the mast.

Installation in the mast tube through the plug connection. Inner diameter of the mast tube required: 37 mm nominal diameter!

This product is used successfully 1000 times worldwide!

charge controller

With the associated charge controller, the generator's three-phase alternating current (AC) can be used to charge 24-volt (DC) batteries and rechargeable batteries.

Aluminum housing with LED for display: charging, battery connected and battery full!


Content:

1 x 24 volt / 500 watt wind turbine
3 x rotor blades
1 x 24 volt / 500 watt charge controller
2 x user manual

Charge controller 24 V / 500 W, microprocessor # 2018

Product Description:

LOAD REGULATOR, Microprocessor controlled

This charge regulator is a 3-phase alternating current (AC) to charge 24 volts Batteries (DC) and the available battery.
Good for our proven wind generators Breeze ista!

Charging connected, battery and battery fully: aluminum case with LED for display!



PRODUCT CHARACTERISTICS

CHARGE CONTROLLER
Rated Output Power 500 W

functions
Inverter AC to DC,
the charging process control,
protect the battery against overload
braking function at high wind speeds

SIZE 140 x 120 x 60 cm
Weight 0, 5 kg
Performance input voltage range 24 ~ 26V

MAX. WIND ENERGY INPUT 500 W
RATED OUTPUT CAPACITY 500 W

MAX WIND GENERATOR INPUT STATUS 20 BIS
Battery
24 V
battery Recommended battery
2 pieces 24 V / 75 AH or 1 piece 24 V / 150 Ah
Overload protection 24 V




WIND POWER 500W-24V

properties

Plastic + 30% fiberglass
Volume 40 dB
Dimensions 21 x 61 x 41
Weight 6 kg
Color white
mast without mast

BLADES
Material Plastic + 30% fiberglass
Length 55 cm
Rotor width 16 cm
Weight 220 gr
Rotor diameter    115 cm

Content:
Mounting screws 1 sentence
Body 1 piece
Nose 1 piece
Hub 1 piece
Wing 3 pieces
User manual

OPTIONS
Mast
Extension

WIND SPEED
Wind Starting 3 m / s
Rated Speed ​​12.5 m / s
Maximum Wind Speed ​​45 m / s

POWER
Voltage 24V (AC)
Rating 400W
Maximum Performance MAXIMUM 500W Ampere 20A
