STRUCTURE PANEL FALCAT INCLINED 60C 30º

Blocks not included.

Choose the number of panels from the drop-down menu

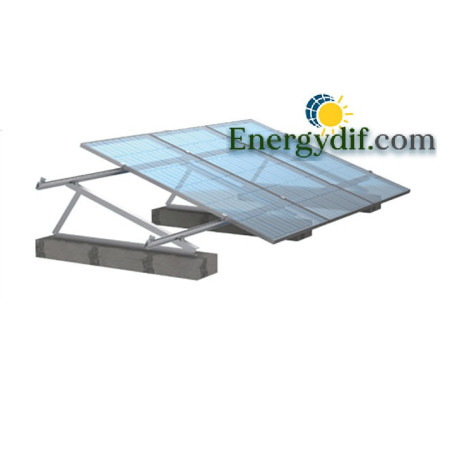

The Structure 1 Panel 60c 30º Inclined Falcat is a support to be able to place the solar panels on a roof without inclination. The panels are placed vertically on the structure with an inclination of 30º with respect to the surface on which it is installed. The feet are pre-assembled and closed triangles with a large support surface that allows them to be anchored to the metal straps of a sheet metal roof. In this case, the structure is designed for panels of 60 cells or not exceeding a maximum height of 1.75 m.

Description Structure Panel 60c Falcat Inclined 30º

The design of this structure serves to support the solar panels on a flat surface that  does not have the correct tilt or orientation  . This model is suitable for any type of panel with a maximum width of 1.10 meters and a maximum length of 1.75 m. In this case, the structure is designed for panels of 60 cells or not exceeding a maximum height of 1.75 m  . The legs are pre-assembled closed triangles that guarantee superior solidity. The support surface is very long so that it can be easily anchored if installed on a sheet metal roof with purlins that support the roof.

This inclined structure of Falcat is designed to be installed in the most interesting orientation,  always having the panels vertically  . The row of panels will have a standard inclination of 30º with respect to the surface on which the structure is anchored.

Structural Materials 1 Panel 60c Falcat Inclined at 30º

The materials with which this structure has been made are 6005 T5 anodized aluminum and 304 stainless steel  . The anchor screws where it will be installed are not included  . Depending on the surface on which it is installed (concrete, metal roof, etc.), one type of screw or another will be required, which you will have to purchase yourself.

It must be taken into account that in addition to the weight, the surface on which the installation is carried out will also have to resist the stresses caused by the wind  . It is your responsibility to ensure that it is installed in a safe and solid place. The advantage of the structure is how quickly the structure can be installed, as the triangles are pre-assembled and do not require any special tools (just an adjustable or pipe wrench and everything you need to anchor the structure to the surface where it is installed. ).

Anodized aluminum 6005 T5 is a high strength aluminum alloy, as well as its ability to be anodized, it is used to manufacture structural profiles. All the structures present can be offered in anodized aluminum, whose advantage over raw aluminum structures is the greater resistance to corrosion.

The packaging of the structure is unitary for structures up to 6 units, so if you buy a structure for more than 6 panels you will receive 2 structures as well as a junction kit to join them in a single row. Along with the structure, you will also receive a detailed assembly drawing so that you can install it easily.

Technical sheet and manual of the Structure 1 Panel 60c 30º Inclined Falcat

See the manual of the Structure 1 Panel 60c 30º Inclined Falcat
